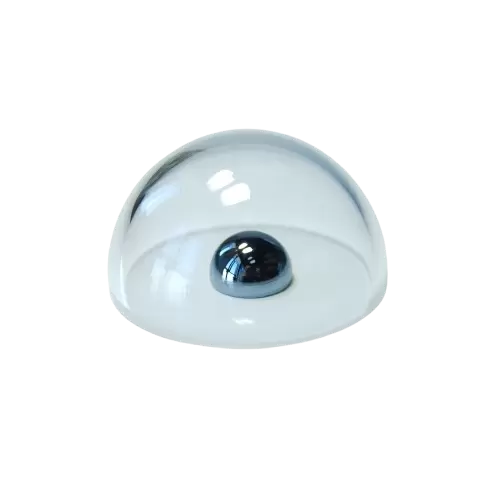

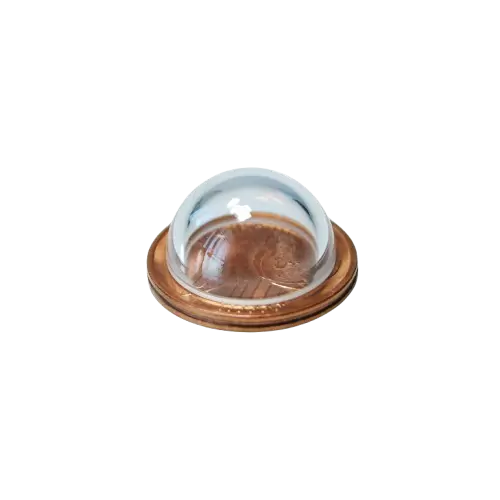

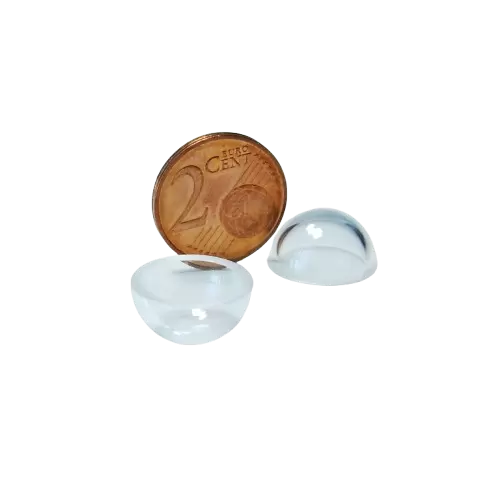

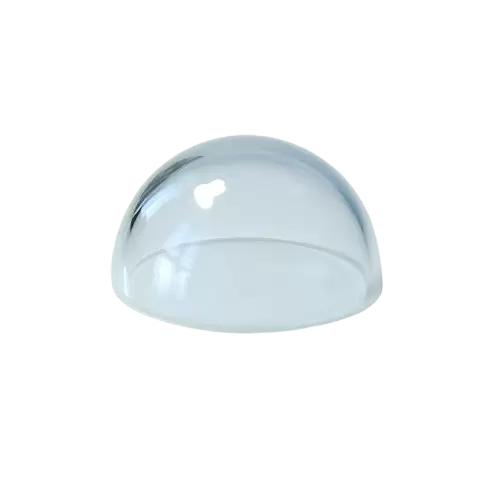

Name: 반구형 돔
Rating: 4.5 (100 reviews)

주요 특징

Materials

Optical glass such as K9, fused silica, sapphire, MgF2, silicon (Si), ZnSe, ZnS, etc. These materials possess high transmittance, low absorption, low scattering, uniform refractive index, and specific dispersion characteristics.
Shape

Precisely hemispherical. The machining precision of the center and radius of curvature of the sphere is extremely high.
Surface Quality

The surface is precision polished to an optical grade of 10-5 to ensure image quality and reduce scattering and aberrations.
Coating

An AR coating is typically applied to the concave surface to maximize the transmittance of specific wavelengths of light (e.g. visible light) and reduce reflection loss.

그림

사양 반구형 돔

기판 재료	K9(CDGM), 사파이어, Si, MgF2, N-BK7, N-BK10, Corining 7980, JGS1, Borofloat 33, ZnSe, ZnS 등	표면 품질	60/40, 40/20, 20/10, 10/5
차원	6mm-350mm	표면 가장자리	10(5)-3(0.5)
두께	0.5mm-30mm	코팅	반사 방지(AR) 코팅 또는 고객 요청에 따라
두께	일반적으로 ±0.1mm, 최상급 오차 범위는 ±0.02mm입니다.	ECOPTIK 연간 생산 능력	30만 개 이상

일반적인 적용 분야

Underwater Photography and Detection

Observation windows for underwater cameras, ROVs (Remotely Operated Vehicles), and AUVs (Autonomous Underwater Vehicles). The hemispherical design provides a near 180° wide field of view while withstanding water pressure.
Infrared Systems and Thermal Imaging

Fairings for missile seekers, infrared search and track systems, and thermal imagers. Commonly used infrared materials such as zinc sulfide (ZnS), zinc selenide (ZnSe), and magnesium fluoride (MgF2) ensure high infrared light transmittance.
Laser Systems

Output or protective windows for high-power lasers. Must be able to withstand high power density and have extremely low absorptivity to prevent thermal lensing effects.
Aerospace

Optoelectronic pods for aircraft and UAVs. Protective domes for satellite star sensors or Earth sensors.

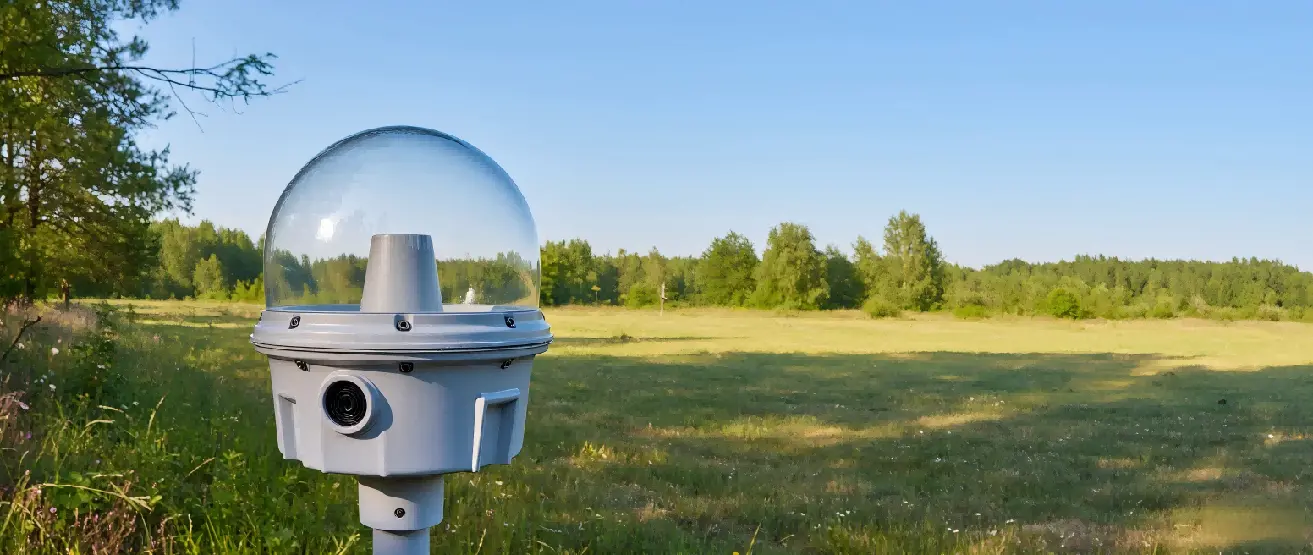

Industrial and Scientific Instruments

Optical measurement equipment and sensors for special environments. Monitoring systems requiring wide-angle fields of view.
