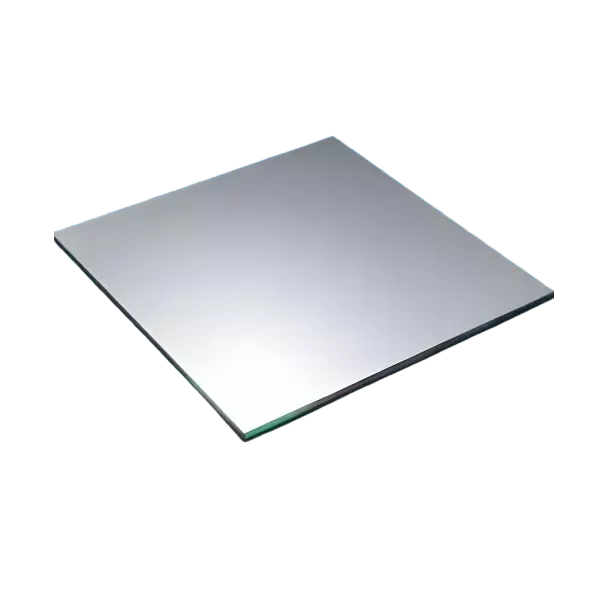

보호 처리된 알루미늄 거울

Name: 보호 처리된 알루미늄 거울
Rating: 4.5 (100 reviews)

순수 알루미늄 코팅의 내구성 부족 문제를 해결하기 위해 불화마그네슘(MgF₂) 또는 이산화규소(SiO₂) 층으로 보호 코팅된 알루미늄 미러를 제공합니다. ECOPTIK은 원형, 사각형 및 맞춤형 형상의 미러를 다양한 크기로 제공하며, 보호 알루미늄 코팅 및 UV 강화 알루미늄 코팅을 적용합니다.

문의하기

지금 문의하세요

주요 특징

Robust and Durable

The protective film significantly enhances the mechanical strength of the aluminum film, enabling it to withstand gentle cleaning and greatly extending its service life.
Broad-Spectrum High Reflectivity

Inheriting the high reflectivity of aluminum film across the visible to far-infrared bands, and with a flat reflectivity curve, it is insensitive to incident angle and polarization state.
Low Cost

It is one of the most widely used and economical metal reflectors, suitable for the vast majority of general-purpose optical systems.
Limitations

Not suitable for high-power lasers. The nature of the metal film determines its low laser damage threshold, making it unable to withstand high-energy/high-power laser irradiation.

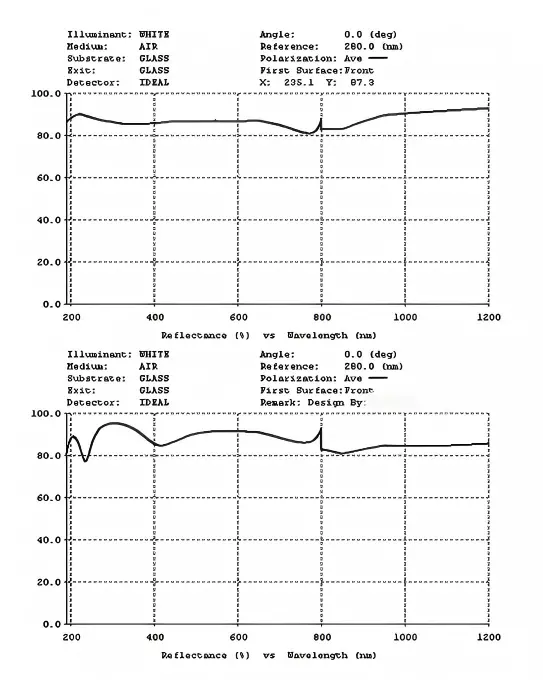

스펙트럼 곡선

사양 보호 처리된 알루미늄 거울

기질	용융 실리카/실리카/BK7 유리
차원	2mm~100mm
투명 개구부	치수의 90% 이상
표면 품질	40/20, 20/10 스크래치-디그
표면 불규칙성	λ/2~λ/10 @632nm
두께	1mm~20mm

일반적인 적용 분야

Optical System Components

Used to establish optical paths, deflect beams, and construct basic optical systems (such as laser collimation and interferometry). It is the most commonly used reflector in laboratories, suitable for most routine experiments that do not require maximum efficiency.
Imaging and Optical Instruments

Used for light deflection in instruments such as microscopes, telescopes, and medical diagnostic equipment. Especially in systems requiring coverage from visible light to near-infrared, its flat reflectivity curve ensures accurate color reproduction and balanced energy distribution in imaging.
